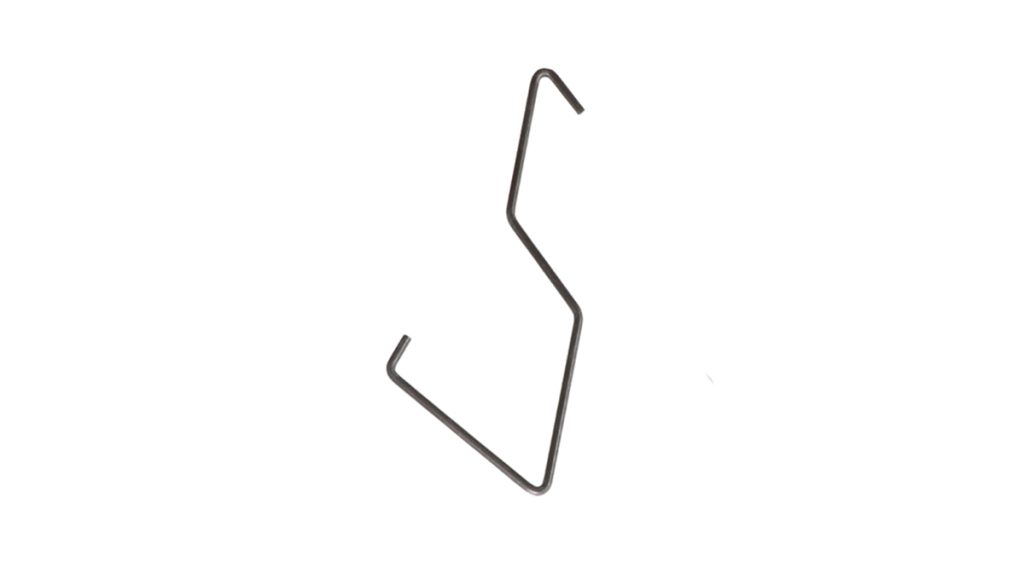

Ganchos estándar PDVx2
Ganchos estándar en forma de V en ambos extremos ofrecen una solución robusta y estable para una variedad de aplicaciones. Esta configuración permite un punto de fijación más seguro y minimiza la oscilación de la pieza, lo que mejora la precisión y la eficiencia del trabajo. Optimiza la conductividad eléctrica y soporta cargas pesadas en diferentes medidas.
Se entrega en cajas modulares, con las piezas separadas por capas de papel para facilitar la selección durante el proceso de empaquetado automatizado.
| Nº prod. | Ctd. por caja | L x Ø mm | R, mm | D, mm |
| 020X1,1 PDVX2 | 10000 | 020X1,1 | 17 | 15 |
| 050X0,6 PDVX2 | 10000 | 050X0,6 | 17 | 15 |
| 050X1,1 PDVX2 | 10000 | 050X1,1 | 17 | 15 |
| 050X1,5 PDVX2 | 5000 | 050X1,5 | 17 | 15 |
| 050X2,0 PDVX2 | 4000 | 050X2,0 | 17 | 15 |
| 050X3,0 PDVX2 | 3000 | 050X3,0 | 18 | 18 |
| 060X1,5 PDVX2 | 5000 | 060X1,5 | 17 | 15 |
| 060X2,0 PDVX2 | 4000 | 060X2,0 | 17 | 15 |
| 060X3,0 PDVX2 | 2000 | 060X3,0 | 18 | 18 |
| 075X1,1 PDVX2 | 6000 | 075X1,1 | 17 | 15 |
| 075X1,5 PDVX2 | 4000 | 075X1,5 | 17 | 15 |
| 075X2,0 PDVX2 | 4000 | 075X2,0 | 17 | 15 |
| 075X3,0 PDVX2 | 2500 | 075X3,0 | 18 | 18 |
| 075X4,0 PDVX2 | 1200 | 075X4,0 | 20 | 20 |
| 100X0,6 PDVX2 | 4000 | 100X0,6 | 17 | 15 |
| 100X1,1 PDVX2 | 4000 | 100X1,1 | 17 | 15 |
| 100X1,5 PDVX2 | 3000 | 100X1,5 | 17 | 15 |
| 100X2,0 PDVX2 | 3000 | 100X2,0 | 17 | 15 |
| 100×2,5 PDVX2 | 2000 | 100X2,5 | 18 | 18 |
| 100X3,0 PDVX2 | 1500 | 100X3,0 | 18 | 18 |
| 100X4,0 PDVX2 | 800 | 100X4,0 | 20 | 20 |
| 100X5,0 PDVX2 | 500 | 100X5,0 | 22 | 22 |
| 100X6,0 PDVX2 | 500 | 100X6,0 | 22 | 22 |
| 100X8,0 PDVX2 | 300 | 100X8,0 | 24 | 24 |
| 100X10,0 PDVX2 | 200 | 100X10,0 | 30 | 30 |
| 120X1,5 PDVX2 | 2000 | 120X1,5 | 17 | 15 |
| 120X2,0 PDVX2 | 2000 | 120X2,0 | 17 | 15 |
| 120X3,0 PDVX2 | 1000 | 120X3,0 | 18 | 18 |
| 120X4,0 PDVX2 | 600 | 120X4,0 | 20 | 20 |
| 150X1,1 PDVX2 | 3400 | 150X1,1 | 17 | 15 |
| 150X1,5 PDVX2 | 2400 | 150X1,5 | 17 | 15 |
| 150X2,0 PDVX2 | 1500 | 150X2,0 | 17 | 15 |
| 150×2,5 PDVX2 | 1000 | 150X2,5 | 18 | 18 |
| 150X3,0 PDVX2 | 800 | 150X3,0 | 18 | 18 |
| 150X4,0 PDVX2 | 500 | 150X4,0 | 20 | 20 |
| 150X5,0 PDVX2 | 350 | 150X5,0 | 22 | 22 |
| 150X6,0 PDVX2 | 300 | 150X6,0 | 22 | 22 |
| 150X8,0 PDVX2 | 200 | 150X8,0 | 24 | 24 |
| 150X12,0 PDVX2 | 100 | 150X12,0 | 32 | 32 |
| 200X1,5 PDVX2 | 2200 | 200X1,5 | 17 | 15 |
| 200X2,0 PDVX2 | 1400 | 200X2,0 | 17 | 15 |
| 200×2,5 PDVx2 | 800 | 200X2,5 | 18 | 18 |
| 200X3,0 PDVX2 | 800 | 200X3,0 | 18 | 18 |
| 200X4,0 PDVX2 | 500 | 200X4,0 | 20 | 20 |
| 200X5,0 PDVX2 | 300 | 200X5,0 | 22 | 22 |
| 200X6,0 PDVX2 | 250 | 200X6,0 | 22 | 22 |
| 200X8,0 PDVX2 | 125 | 200X8,0 | 24 | 24 |
| 200X10,0 PDVX2 | 100 | 200X10,0 | 30 | 30 |
| 250X1,5 PDVX2 | 2000 | 250X1,5 | 17 | 15 |
| 250X2,0 PDVX2 | 1200 | 250X2,0 | 17 | 15 |
| 250X3,0 PDVX2 | 800 | 250X3,0 | 18 | 18 |
| 250X4,0 PDVX2 | 500 | 250X4,0 | 20 | 20 |
| 250X5,0 PDVX2 | 300 | 250X5,0 | 22 | 22 |
| 250X6,0 PDVX2 | 250 | 250X6,0 | 22 | 22 |
| 250X8,0 PDVX2 | 150 | 250X8,0 | 24 | 24 |
| 300X1,1 PDVX2 | 3100 | 300X1,1 | 17 | 15 |
| 300X1,5 PDVX2 | 1800 | 300X1,5 | 17 | 15 |
| 300X2,0 PDVX2 | 1200 | 300X2,0 | 17 | 15 |
| 300×2,5 PDVX2 | 800 | 300X2,5 | 18 | 18 |
| 300X3,0 PDVX2 | 600 | 300X3,0 | 18 | 18 |
| 300X4,0 PDVX2 | 400 | 300X4,0 | 20 | 20 |
| 300X5,0 PDVX2 | 250 | 300X5,0 | 22 | 22 |
| 300X6,0 PDVX2 | 200 | 300X6,0 | 22 | 22 |
| 300X8,0 PDVX2 | 150 | 300X8,0 | 24 | 24 |
| 300X10,0 PDVX2 | 50 | 300X10,0 | 30 | 30 |
| 300X12,0 PDVX2 | 75 | 300X12,0 | 32 | 32 |
| 350X1,5 PDVX2 | 2400 | 350X1,5 | 17 | 15 |
| 350X2,0 PDVX2 | 1600 | 350X2,0 | 17 | 15 |
| 350X3,0 PDVX2 | 800 | 350X3,0 | 18 | 18 |
| 350X4,0 PDVX2 | 500 | 350X4,0 | 20 | 20 |
| 400X1,5 PDVX2 | 1800 | 400X1,5 | 17 | 15 |
| 400X2,0 PDVX2 | 1300 | 400X2,0 | 17 | 15 |
| 400×2,5 PDVX2 | 500 | 400X2,5 | 18 | 18 |
| 400X3,0 PDVX2 | 800 | 400X3,0 | 18 | 18 |
| 400X4,0 PDVX2 | 400 | 400X4,0 | 20 | 20 |
| 400X5,0 PDVX2 | 250 | 400X5,0 | 22 | 22 |
| 400X6,0 PDVX2 | 200 | 400X6,0 | 22 | 22 |
| 400X8,0 PDVX2 | 100 | 400X8,0 | 24 | 24 |
| 450X2,0 PDVX2 | 1500 | 450X2,0 | 17 | 15 |
| 450X3,0 PDVX2 | 800 | 450X3,0 | 18 | 18 |
| 450X4,0 PDVX2 | 500 | 450X4,0 | 20 | 20 |
| 500X1,5 PDVX2 | 2200 | 500X1,5 | 17 | 15 |
| 500X2,0 PDVX2 | 1200 | 500X2,0 | 17 | 15 |
| 500×2,5 PDVX2 | 800 | 500X2,5 | 18 | 18 |
| 500X3,0 PDVX2 | 700 | 500X3,0 | 18 | 18 |
| 500X4,0 PDVX2 | 450 | 500X4,0 | 20 | 20 |
| 500X5,0 PDVX2 | 250 | 500X5,0 | 22 | 22 |
| 500X6,0 PDVX2 | 200 | 500X6,0 | 22 | 22 |
| 500X8,0 PDVX2 | 100 | 500X8,0 | 24 | 24 |
| 550X1,5 PDVX2 | 2400 | 550X1,5 | 17 | 15 |
| 550X2,0 PDVX2 | 1600 | 550X2,0 | 17 | 15 |
| 550X3,0 PDVX2 | 900 | 550X3,0 | 18 | 18 |
| 600X1,5 PDVX2 | 2000 | 600X1,5 | 17 | 15 |
| 600X2,0 PDVX2 | 1500 | 600X2,0 | 17 | 15 |
| 600×2,5 PDVX2 | 800 | 600X2,5 | 18 | 18 |
| 600X3,0 PDVX2 | 600 | 600X3,0 | 18 | 18 |
| 600X4,0 PDVX2 | 500 | 600X4,0 | 20 | 20 |
| 600X5,0 PDVX2 | 250 | 600X5,0 | 22 | 22 |
| 600X6,0 PDVX2 | 200 | 600X6,0 | 22 | 22 |
| 600X8,0 PDVX2 | 120 | 600X8,0 | 24 | 24 |
| 650X2,5 PDVX2 | 1500 | 650X2,5 | 18 | 18 |
| 700X1,5 PDVX2 | 2000 | 700X1,5 | 17 | 15 |
| 700X2,0 PDVX2 | 1500 | 700X2,0 | 17 | 15 |
| 700X3,0 PDVX2 | 800 | 700X3,0 | 18 | 18 |
| 700X4,0 PDVX2 | 500 | 700X4,0 | 20 | 20 |
| 700X5,0 PDVX2 | 300 | 700X5,0 | 22 | 22 |
| 700X6,0 PDVX2 | 300 | 700X6,0 | 22 | 22 |
| 700X8,0 PDVX2 | 100 | 700X8,0 | 24 | 24 |
| 800X1,5 PDVX2 | 1800 | 800X1,5 | 17 | 15 |
| 800X2,0 PDVX2 | 1600 | 800X2,0 | 17 | 15 |
| 800X3,0 PDVX2 | 800 | 800X3,0 | 18 | 18 |
| 800X4,0 PDVX2 | 500 | 800X4,0 | 20 | 20 |
| 800X5,0 PDVX2 | 300 | 800X5,0 | 22 | 22 |
| 800X6,0 PDVX2 | 200 | 800X6,0 | 22 | 22 |
| 800X8,0 PDVX2 | 100 | 800X8,0 | 24 | 24 |
| 900X2,0 PDVX2 | 2000 | 900X2,0 | 17 | 15 |
| 900X3,0 PDVX2 | 1000 | 900X3,0 | 18 | 18 |
| 900X4,0 PDVX2 | 600 | 900X4,0 | 20 | 20 |
| 900X5,0 PDVX2 | 400 | 900X5,0 | 22 | 22 |
| 900X6,0 PDVX2 | 250 | 900X6,0 | 22 | 22 |
| 900X8,0 PDVX2 | 125 | 900X8,0 | 24 | 24 |
| 1000X2,0 PDVX2 | 1600 | 1000X2,0 | 17 | 15 |
| 1000X3,0 PDVX2 | 900 | 1000X3,0 | 18 | 18 |
| 1000X4,0 PDVX2 | 500 | 1000X4,0 | 20 | 20 |
| 1000X5,0 PDVX2 | 250 | 1000X5,0 | 22 | 22 |
| 1000X6,0 PDVX2 | 200 | 1000X6,0 | 22 | 22 |
| 1000X8,0 PDVX2 | 100 | 1000X8,0 | 24 | 24 |
